Description
SPECIFICATIONS
Accuracy Class: ±1%
App: Tuya&Smart Life
Battery Included: no
Brand Name: EARU
Certification: CE
Choice: yes
DIY Supplies: Electrical

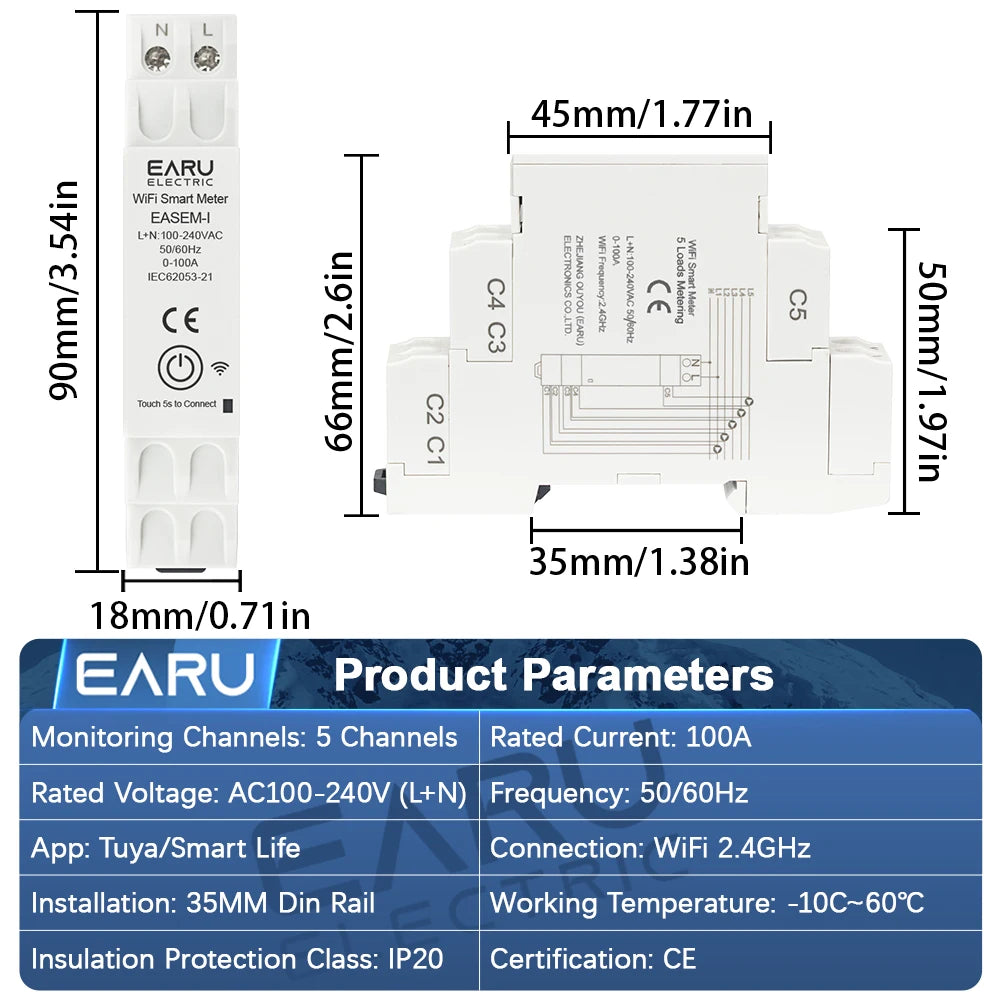

Dimensions: 90*18*66MM
Display Type: Digital Only
Frequency: 50/60Hz
Function 1: Active Energy Total
Function 10: Bidirectional Measurement
Function 2: Total Forward Energy
Function 3: Total Reverse Activce Energy
Function 4: Current (A)
Function 5: Voltage (V)
Function 6: Active Power (kW)
Function 7: Total Active Power (kW)
Function 8: Total Reactive Power (kVar)
Function 9: Overall Power Factor
High-concerned chemical: None
Installation: 35MM Din Rail
Max Operating Current: 100A - 119A
Measuring Energy Range: 999999.99kWh

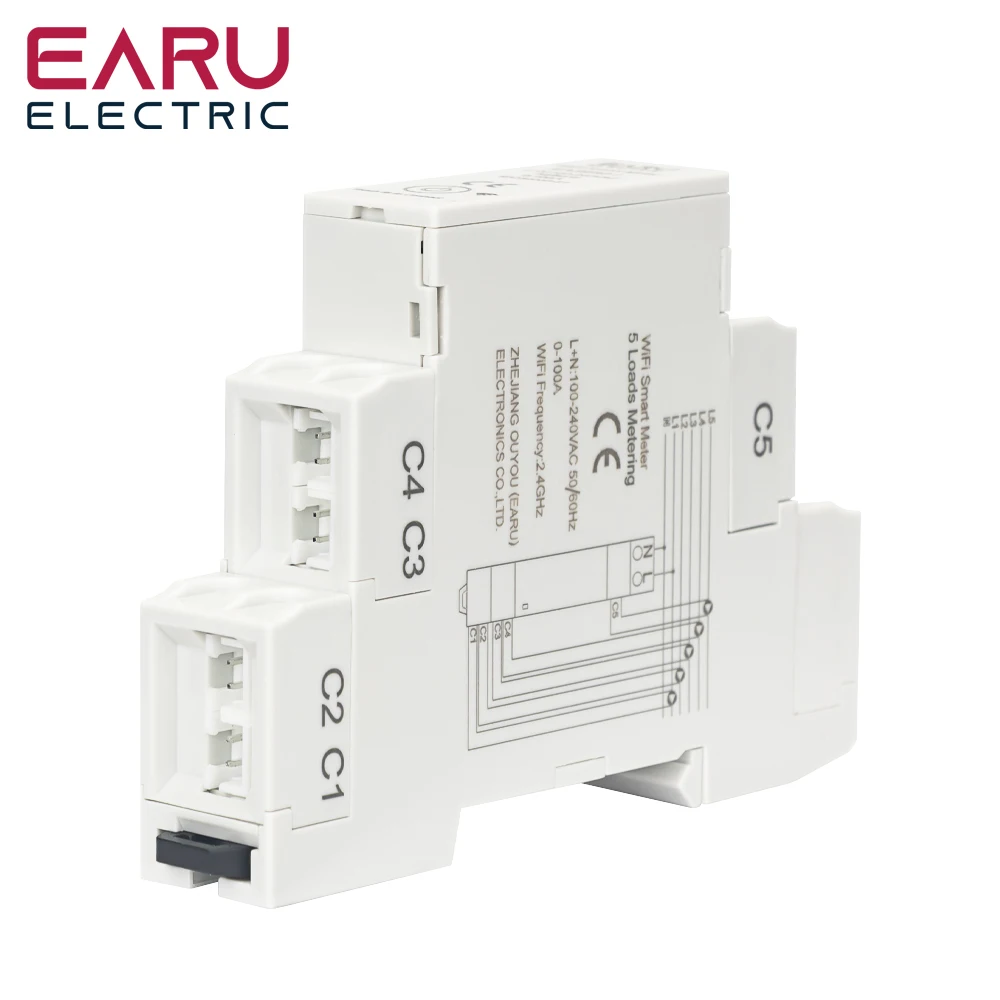

Model Number: EASEM-I
Operating Temperature: -10℃~60 ℃
Origin: Mainland China
Output Voltage: AC100-240V
Phase: single phase
Power Source: AC
Power Supply: AC
Protocol: WiFi 2.4GHz Only
Rated Current: 100A
Rated Voltage: 240V
Semi-finishedproduct: No
Working Voltage: AC100-240V
semi_Choice: yes
Functions:

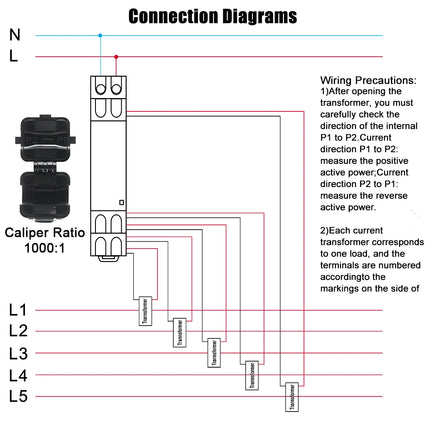

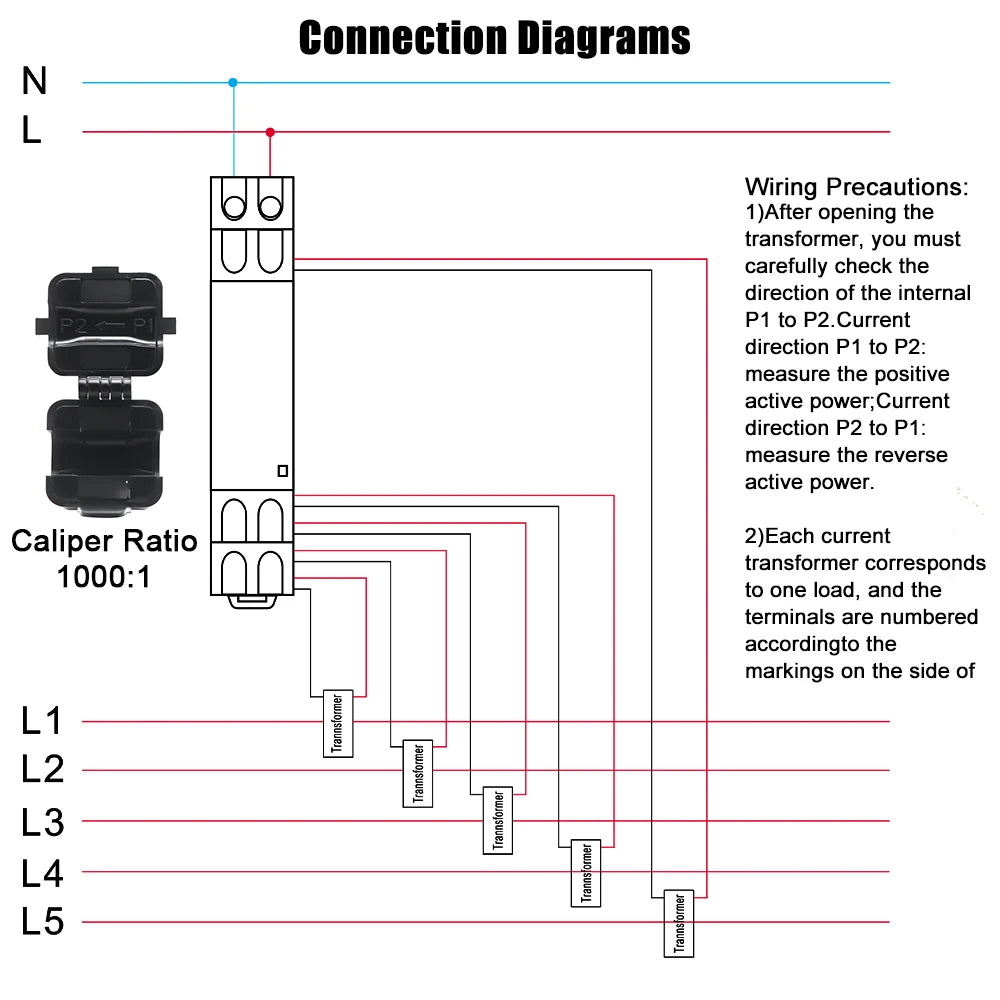

1. Provide monitoring for 5 lines

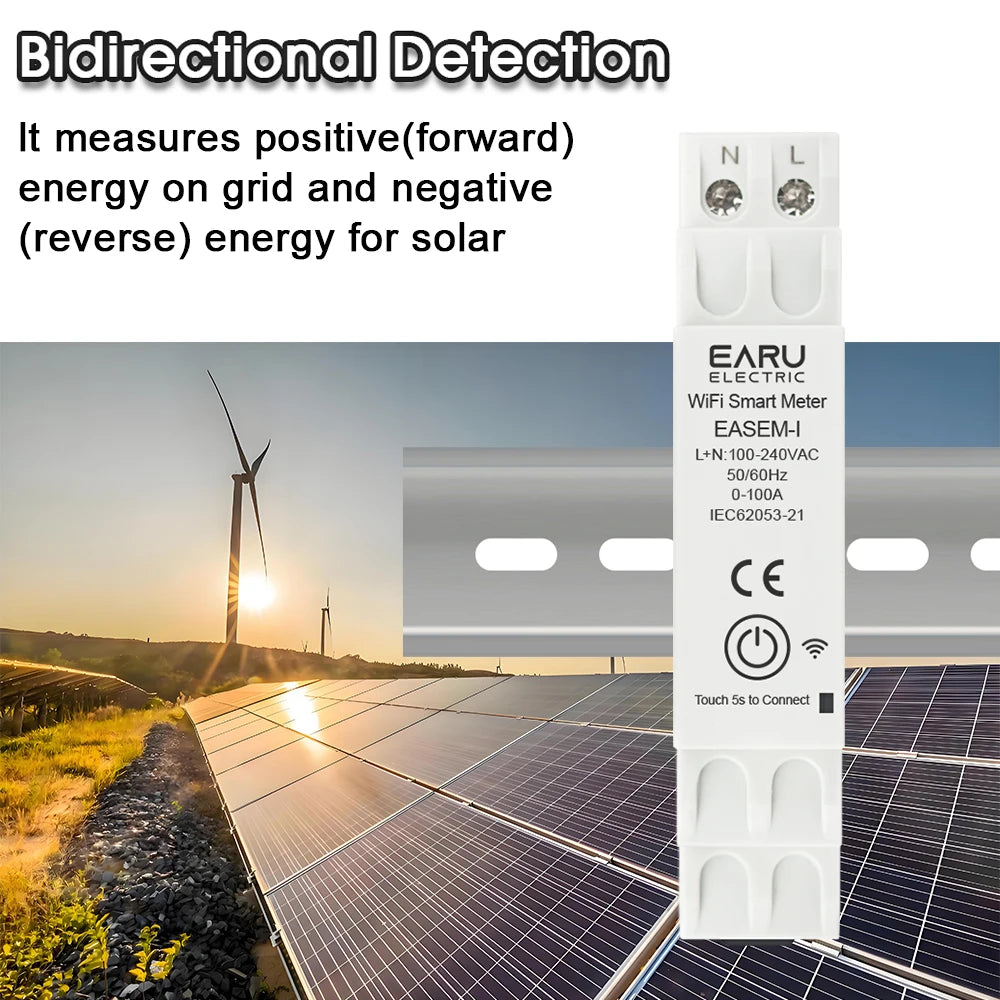

2. Bi-directional metering Two-way meter, to measure both positive and negative energy;

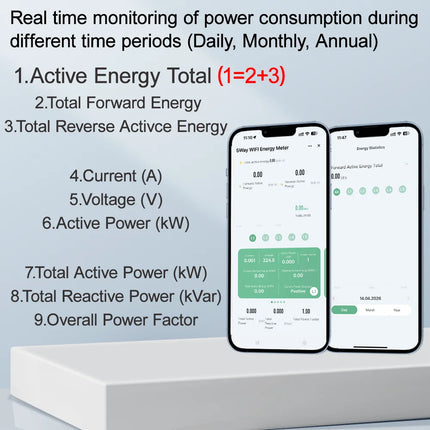

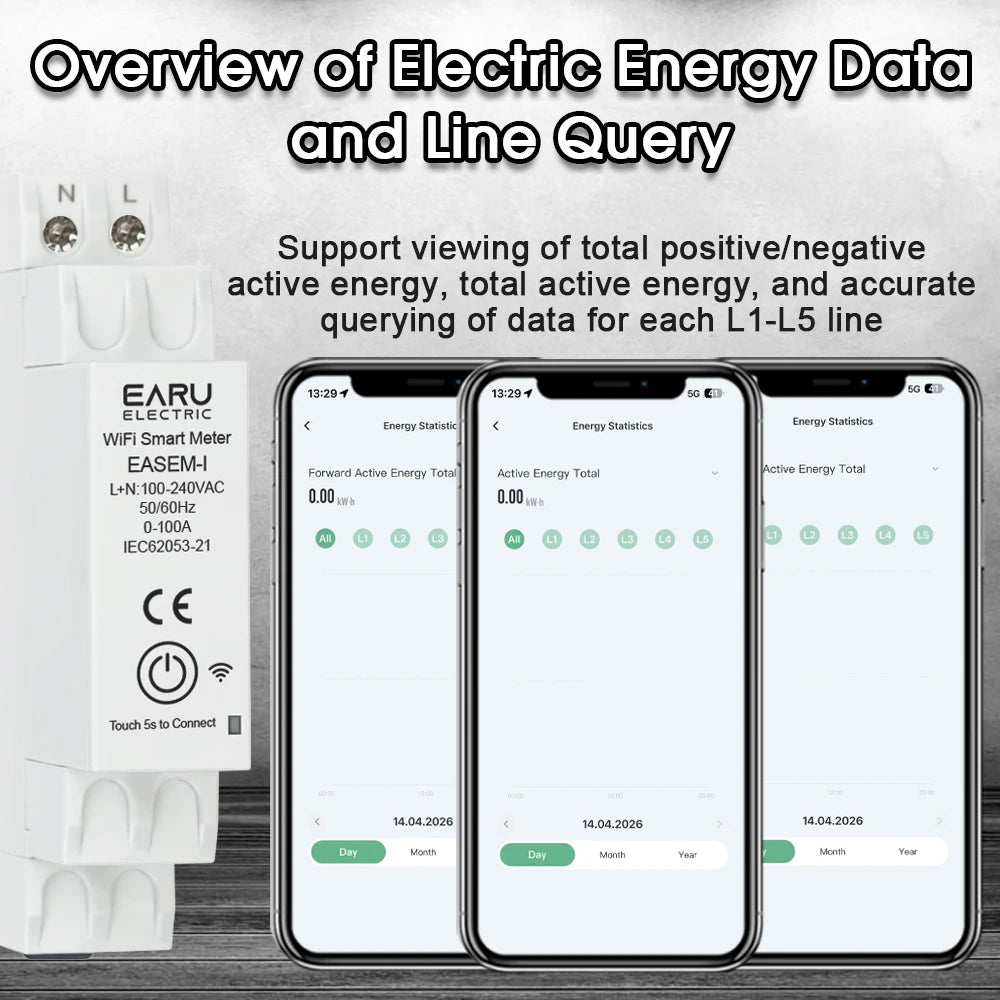

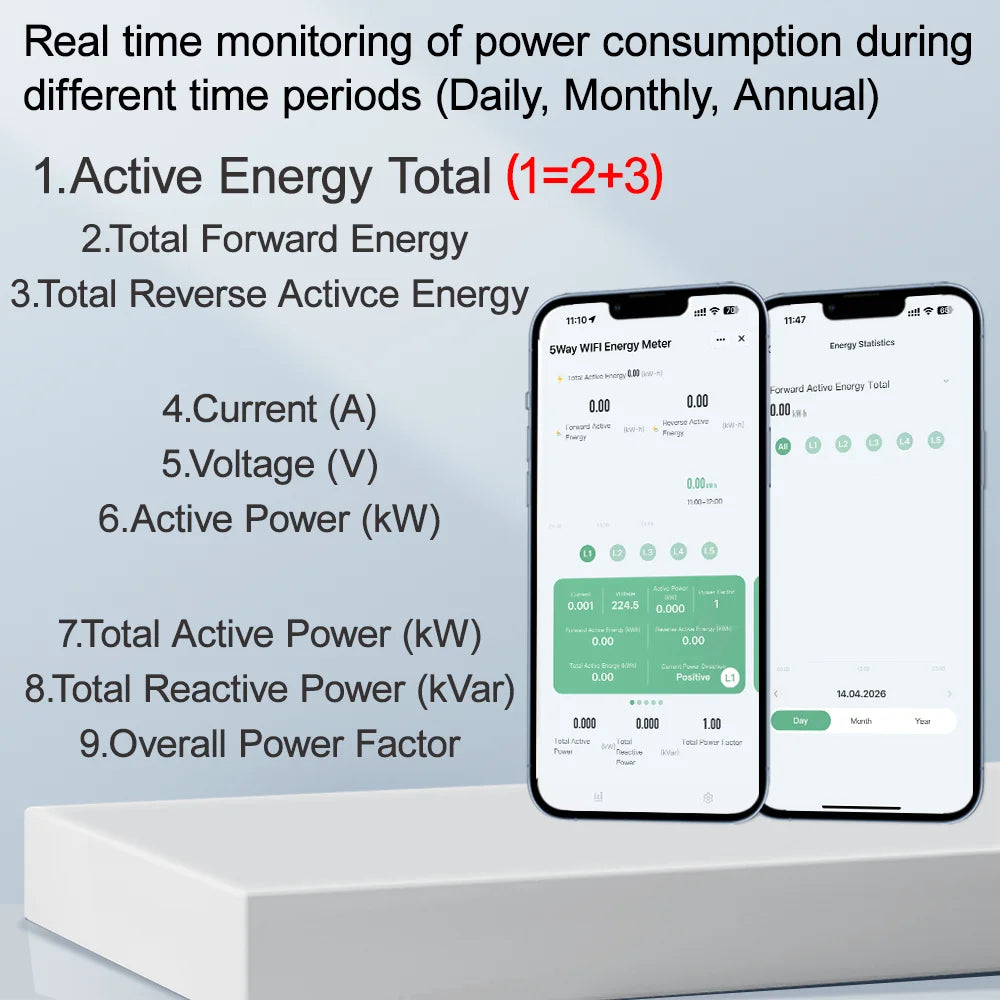

3. Monitor real-time consumption statistics
- Total active energy
- Total forward active energy
- Total reverse active energy
- Current (A)
- Voltage (V)
- Active Power (kW)
- Total active power (kW)
- Total reactive power (kVar)
- Overall power factor
Specificaions:
Working Voltage: AC100V-240V, 50/60Hz
Rated Current: 100A

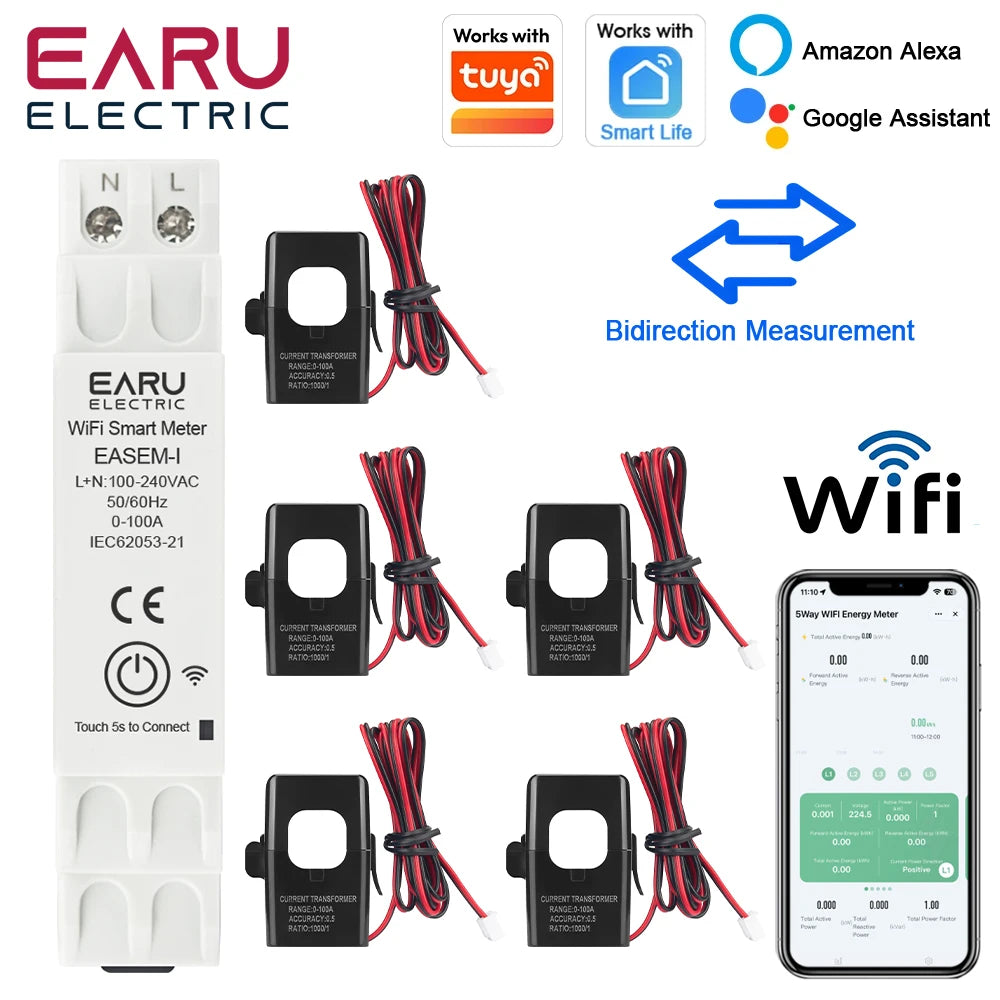

CT Size：φ16MM
Wireless Type: Wi-Fi 2.4GHz Only，5GHz Not Support
Support System: Android/IOS
Installation: 35MM Din Rail

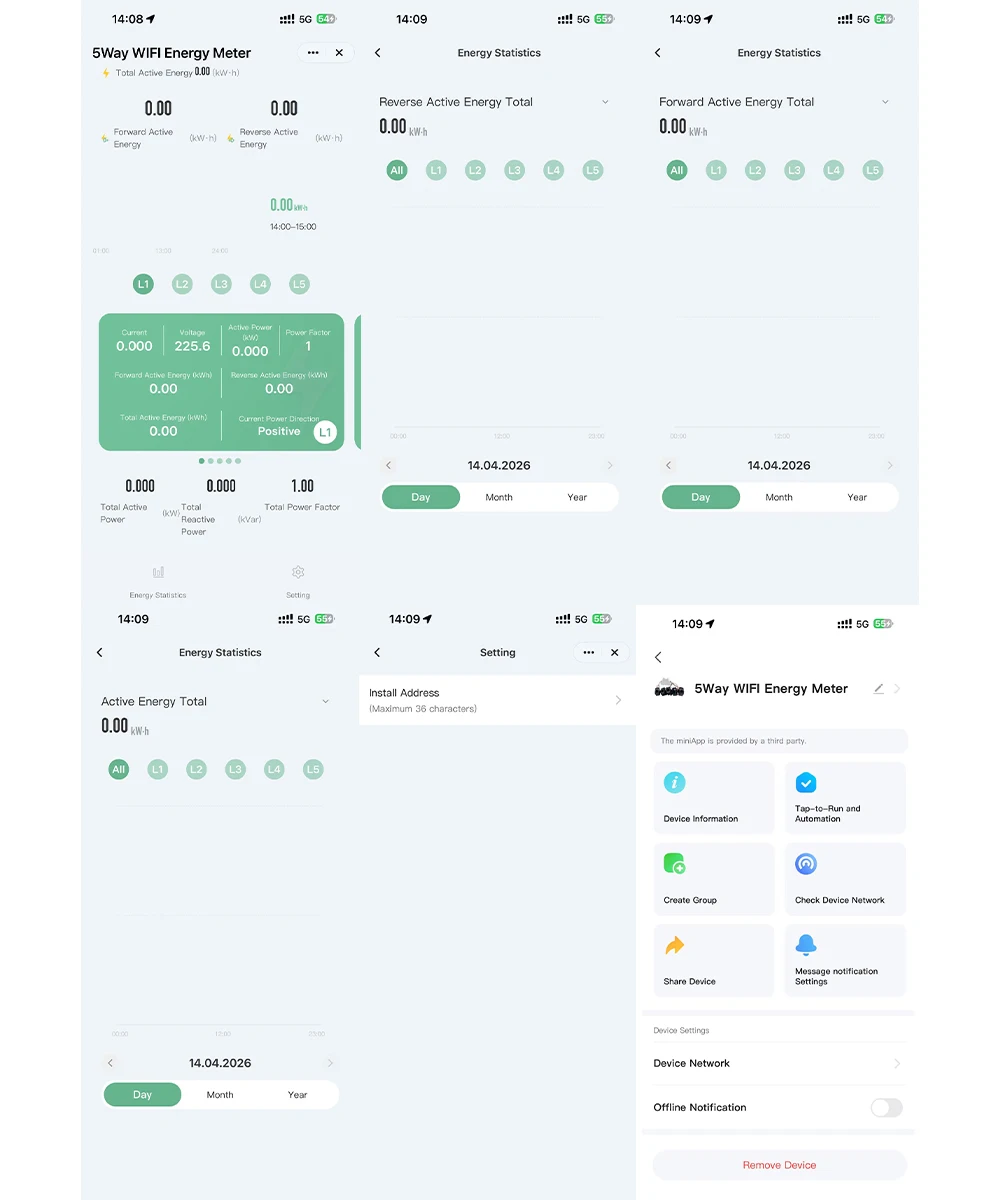

Remote control at anytime from anywhere your mobile phone can get Internet signal by Tuya App/Smart Life App, no distance limit
